Product Summary

The AN7523N is a 0.5W to 3W BTL audio power amplifier IC. Equipped with a standby function and mute or DC volume circuit, the AN7523N includes a lineup of single and dual output models. With simplified set design due to minimum external components, this IC has a wide variety of applications. The applications of the AN7523N are: TVs, Audio equipment, Personal computers,Active speakers.

Parametrics

AN7523N absolute maximum ratings: (1)Storage temperature Tstg: -55 to +150℃; (2)Operating ambient temperature Topr: -25 to +70℃; (3)Supply voltage Vcc: 14V; (4)Supply current Icc: 2.0V; (5)Power dissipation PD: 1127mW Ta=70℃.

Features

AN7523N features: (1)Operating power sourcs voltage: 3.0V to 13.5V; (2)Built-in standby function; (3)Built-in mute or DC volume circuit.

Diagrams

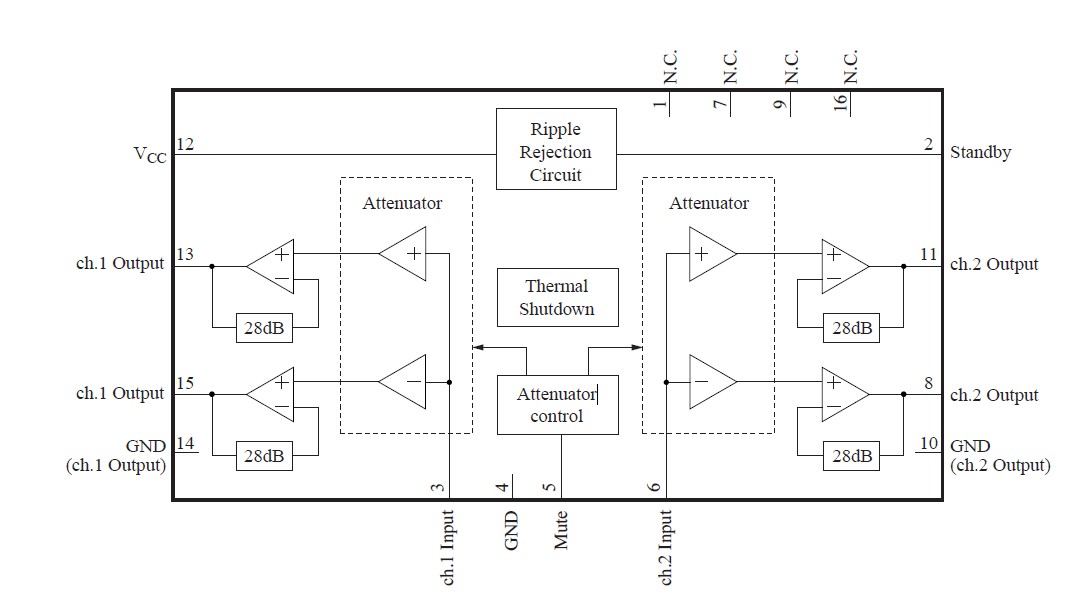

AN7523N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

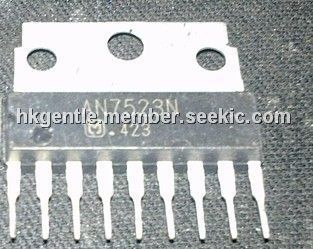

AN7523N
