Product Summary

The 2SJ56 is a low frequency power amplifier.

Parametrics

2SJ56 absolute maximum ratings: (1)Drain source voltage: -200V; (2)Gate source voltage: ±20V; (3)Drain current: -8A; (4)Body drain diode reverse drain current: -8A; (5)Channel dissipation: 125W; (6)Channel temperature: 150℃; (7)Storage temperature: -55 to +150℃.

Features

2SJ56 features: (1)High power gain; (2)Excellent frequency response; (3)High speed switching; (4)Wide area of safe operation; (5)Enhancement mode; (6)Good complementary charachteristics; (7)Equipped with gate protection diodes.

Diagrams

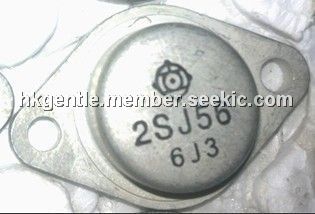

2SJ56 diagram
