Product Summary

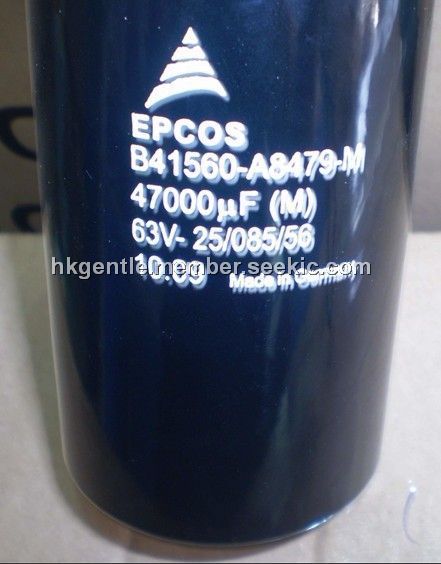

The B41560A8479M is a Long-life grade capacitor with Screw Terminals.

Parametrics

B41560A8479M Specifications: (1)Rated voltage UR: 25 to 100 VDC; (2)Surge voltage US: 1,15 UR; (3)Rated capacitance CR: 1500 to 330 000 μF; (4)Capacitance tolerance: ± 20 %; (5)Self-inductance ESL: Approx. 20 nH; (6)IEC climatic category: To IEC 60068-1: 40/105/56 (– 40 ℃/+ 105 ℃/56 days damp heat test); (7)Detail specification: Similar to CECC 30301-810; (8)Sectional specification: IEC 60384-4.

Features

B41560A8479M features: (1)High reliability, extremely good electrical characteristics; (2)High CU product, i. e. extremely compact; (3)High ripple current capability; (4)All-welded construction ensures reliable electrical contact; (5)Version with low-inductance design available.

Diagrams

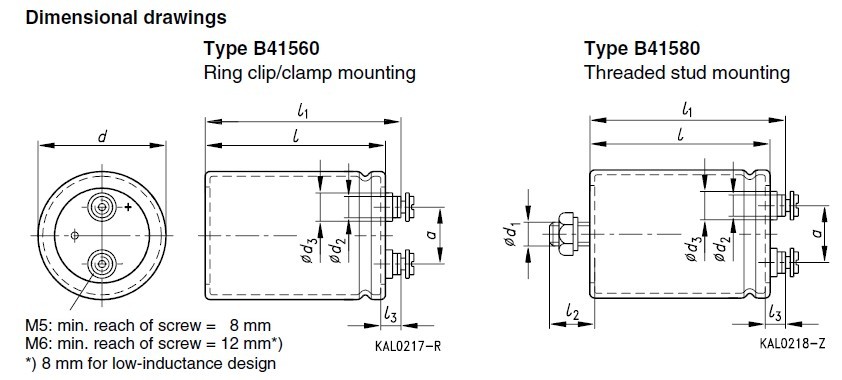

B41560A8479M Dimensional drawings

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
B41560A8479M
B41560A8479M
EPCOS
Aluminum Electrolytic Capacitors - Screw Terminal 47000uF 63volts 64.3x105.7mm
Data Sheet
0-1: $39.82
1-15: $37.33
15-25: $35.56
25-35: $34.10
B41560A8479M003
B41560A8479M003
EPCOS
Aluminum Electrolytic Capacitors - Screw Terminal 47000UF63V AL-ELKO SCREW TERM
Data Sheet
0-17: $77.60
17-25: $70.54
25-50: $64.90
50-100: $59.71
B41560A8479M3
B41560A8479M3
EPCOS
Aluminum Electrolytic Capacitors - Screw Terminal AL-ELKO SCREW TERMINALS 47000UF 63V
Data Sheet
Negotiable
