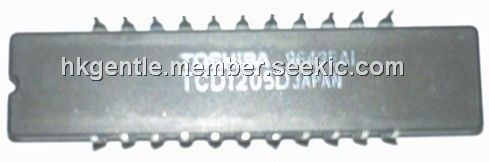

Product Summary
The TCD1205D is a high sensitive and low dark current 2048-elements linear image sensor. The sensor can be used for POS handscanner. The TCD1205D is operated by only 5V power supply, and mounted in 22-pin cerdip package with hermetic sealed optical glass window. The TCD1205D has electronic shutter function. Electronic shutter function can keep always output voltage constant that vary with the intensity of lights.
Parametrics
TCD1205D absolute maximum ratings: (1)clock pulse voltage, VΦ: -0.3 to 8V; (2)shift pulse voltage, VSH: -0.3 to 8V; (3)reset, boost pulse voltage, VRS, VBT: -0.3 to 8V; (4)integration clear gate pulse voltage, VICG: -0.3 to 8V; (5)power supply voltage, VOD: -0.3 to 8V; (6)operating temperature, Topr: -25 to 60℃; (7)storage temperature, Tstg: -40 to 100℃.
Features
TCD1205D features: (1)number of image sensing elemnets: 2048; (2)image sensing element size: 14μm by 200μm on 14μm cneters; (3)photo sensing region: high sensitive and low dark current pn photodiode; (4)clock: 2 phase (5V); (5)internal circuit: electrinic shutter function; (6)package: 22 pin cerdip.

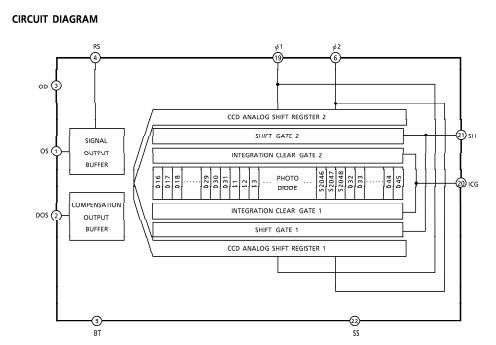

Diagrams
