Product Summary

The P5NK50ZFP is the N-channel 500V-1.22Ω-4.4A TO-220/FP/DPAK/IPAK/I2PAK Zener-protected SuperMESH power MOSFET. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.

Parametrics

P5NK50ZFP absolute maximum ratings: (1)Drain-source Voltage (VGS =0): 500 V; (2)Drain-gate Voltage (RGS =20kΩ): 500 V; (3)Gate- source Voltage: ± 30 V; (4)Drain Current (continuous) at TC = 25℃: 4.4 A; (5)Drain Current (continuous) at TC = 100℃: 2.7 A; (6)Drain Current (pulsed): 17.6 A; (7)Total Dissipation at TC = 25℃: 25 W; (8)Derating Factor: 0.2 W/℃; (9)Gate source ESD(HBM-C=100pF, R=1.5KΩ): 3000 V; (10)Peak Diode Recovery voltage slope: 4.5 V/ns; (11)Insulation Withstand Voltage (DC): 2500 V; (12)Operating Junction Temperature: -55 to 150℃; (13)Storage Temperature: -55 to 150 ℃.

Features

P5NK50ZFP features: (1)Typical RDS(on)=1.22 Ω; (2)Extremely high dv/dt capability; (3)100% avalanche tested; (4)Gate charge minimized; (5)Very low intrinsic capacitances; (6)Very good manufacturing repeatibility.

Diagrams

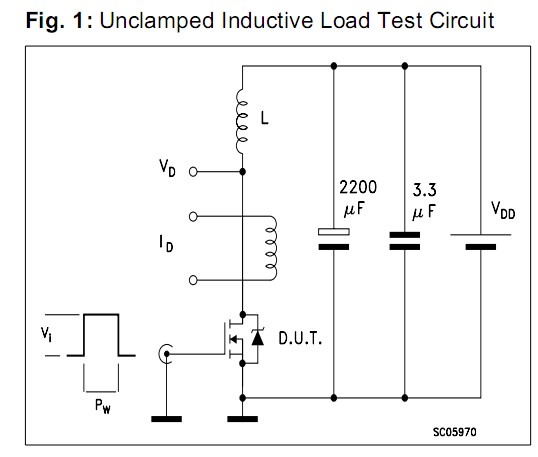

P5NK50ZFP test circuit
