Product Summary

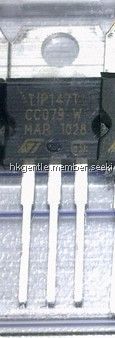

The TIP147 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration, mounted in TO-218 plastic package. The dvice is intented for use in power linear and switching applications. The TIP147 is suitable for linear and switching industrial equipment.

Parametrics

TIP147 absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 100 V; (2)VCEO, Collector-Emitter Voltage (IB = 0): 100 V; (3)VEBO, Emitter-Base Voltage (IC = 0): 5 V; (4)IC, Collector Current: 10 A; (5)ICM, Collector Peak Current: 20 A; (6)IB, Base Current: 0.5 A; (7)Ptot, Total Dissipation at Tcase ≤ 25℃: 125 W; (8)Tstg, Storage Temperature: -65 to 150℃; (9)Tj, Max. Operating Junction Temperature: 150℃.

Features

TIP147 features: (1)STMicroelectronics preferred salestypes; (2)complementary PNP - NPN devices; (3)monolithic darlington configuration; (4)integrated antiparallel collector-emitter diode.

Diagrams

TIP147 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TIP147
TIP147

STMicroelectronics

Transistors Darlington PNP Power Darlington

Data Sheet

0-1: $0.86
1-10: $0.82
10-100: $0.74
100-250: $0.65
TIP147FTU
TIP147FTU

Fairchild Semiconductor

Transistors Darlington PNP Epitaxial Darl

Data Sheet

0-1: $0.99
1-25: $0.79
25-100: $0.69
100-250: $0.60
TIP147G
TIP147G

ON Semiconductor

Transistors Darlington BIP PNP 10A 100V

Data Sheet

0-1: $1.06
1-25: $0.97
25-100: $0.71
100-500: $0.62
TIP147-S
TIP147-S

Bourns

Transistors Darlington PNP DARLINGTON 100V 10A

Data Sheet

Negotiable
TIP147T
TIP147T

Fairchild Semiconductor

Transistors Darlington PNP Transistor Darlington 100V/10a

Data Sheet

0-1: $0.58
1-25: $0.50
25-100: $0.47
100-250: $0.40
TIP147TTU
TIP147TTU

Fairchild Semiconductor

Transistors Darlington PNP Epitaxial Sil Darl

Data Sheet

0-1: $0.59
1-25: $0.52
25-100: $0.46
100-250: $0.39
TIP147P
TIP147P

Other


Data Sheet

Negotiable
TIP147TU
TIP147TU

Fairchild Semiconductor

Transistors Darlington PNP Epitaxial Sil Darl

Data Sheet

0-1: $0.80
1-25: $0.70
25-100: $0.65
100-250: $0.56
