Product Summary
The PXA255A0C400 is a processor. PXA255A0C400 provides high integration, high performance and low power consumption for portable handheld and handset devices. The processor incorporates the Intel XScale Microarchitecture based on the ARM* V5TE architecture. The PXA255A0C400 supports a variety of memory types that allow flexible design requirements. Hooks for connection to two companion chips permit glueless connection to external devices.
Parametrics
PXA255A0C400 absolute maximum ratings: (1)TS Storage Temperature: -40 to 125 ℃; (2)VSS_O Offset Voltage between any two VSS pins (VSS, VSSQ, VSSN): -0.3 to 0.3 V; (3)VCC_O Offset Voltage between any of the following pins: VCCQ and VCCN: -0.3 to 0.3 V; (4)VCC_HV Voltage Applied to High Voltage Supplies (VCCQ, VCCN): VSS-0.3 to VSS+4.0 V; (5)VCC_LV Voltage Applied to Low Voltage Supplies (VCC, PLL_VCC): VSS-0.3 to VSS+1.65 V; (6)VIP Voltage Applied to non-Supply pins except XTAL pins: VSS-0.3 to max of VCCQ+0.3, VSS+4.0 V; (7)VIP_X Voltage Applied to XTAL pins (PXTAL, PEXTAL, TXTAL, TEXTAL): VSS-0.3 to max of VCC+0.3, VSS+1.65 V; (8)VESD: 2000 V; (9)IEOS Maximum DC Input Current (Electrical Overstress) for any non-supply pin: 5 mA.
Features
PXA255A0C400 features: (1)High Performance Processor; (2)Intel Media Processing Technology; (3)Flexible Clocking; (4)Rich Serial Peripheral Set; (5)Low Power; (6)High Performance Memory Controller; (7)Additional Peripherals for system connectivity; (8)Hardware debug features; (9)Hardware Performance Monitoring features.

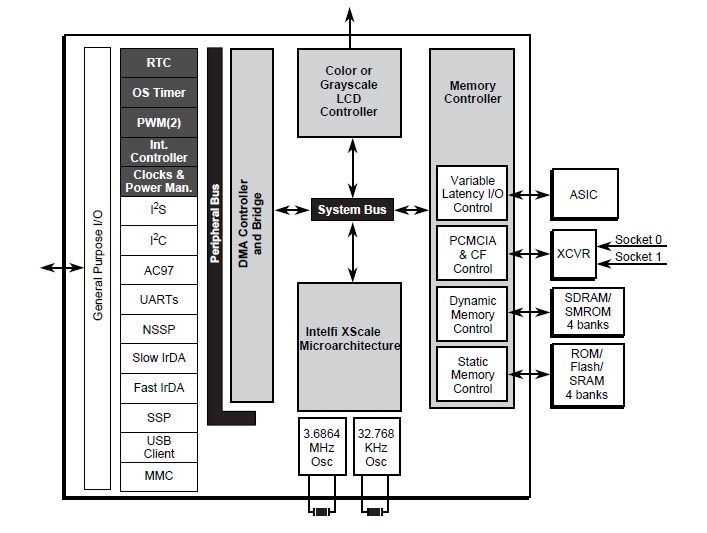

Diagrams
 |
