Product Summary

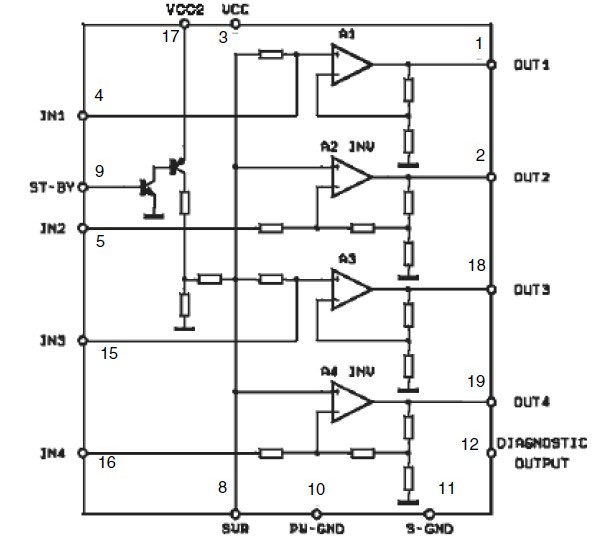

The STA540SA is a class AB Audio amplifier assembled in the Clipwatt19 package designed for high quality sound application. The STA540SA is 4 Single ended amplifier with integrated in the device the Short Circuit Protection, the Thermal Protection and the Diagnostics Functions.
Parametrics
STA540SA absolute maximum ratings: (1)Vs DC Supply Voltage: 20 V; (2)Ptot Total Power Dissipation (Tcase = 70℃): 35 W; (3)Top Operating Temperature: 0 to 70 ℃.
Features
STA540SA features: (1)output power capability 7w x 4; (2)minimum external components count: no bootstrap capacitors; no boucherot cells; internally fixed gain 20db; (3)st-by function (cmos compatible); (4)no audible pop during st-by operations; (5)diagnostic facilities; (6)clip detector; (7)out to gnd short; (8)out to vs short; (9)soft short at turn-on; (10)thermal shutdown proximity.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STA540SA |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
STA540SAN |
STMicroelectronics |
Power Amplifiers 4x10-watt dual/quad power amplifier |
Data Sheet |
|
|
