Product Summary
The 2SD2627 is an NPN Triple Diffused Planar Silicon Transistor.
Parametrics
2SD2627 absolute maximum ratings: (1)Collector-to-Base Voltage, VCBO: 1500 V; (2)Collector-to-Emitter Voltage, VCEO: 800 V; (3)Emitter-to-Base Voltage, VEBO: 6V; (4)Collector Current, IC: 6A; (5)Collector Current (Pulse), ICP: 15 A; (6)Collector Dissipation, PC: 2.0 W; Tc=25℃: 30W; (7)Junction Temperature, Tj: 150℃; (8)Storage Temperature, Tstg: -55 to +150℃.
Features
2SD2627 features: (1)High speed; (2)High breakdown voltage(VCBO=1500V); (3)High reliability(Adoption of HVP process); (4)Adoption of MBIT process; (5)On-chip damper diode.

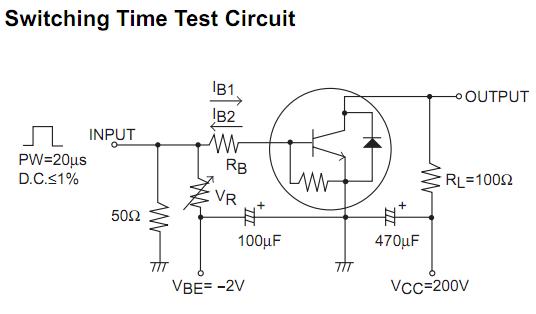

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
2SD2627 |
Other |
Data Sheet |
Negotiable |
|
||||||

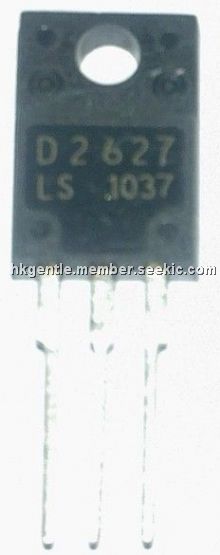

2SD2627LS |
