Product Summary

The PIC18F6722-I/PT is a 64/80-pin, 1-mbit, enhanced flash microcontroller with 10-bit A/D and nanowatt technology. It offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high endurance, Enhanced Flash program memory. On top of these features, the PIC18F6722-I/PT introduces design enhancements that make these microcontrollers a logical choice for many high-performance, power sensitive applications.

Parametrics

PIC18F6722-I/PT absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD and MCLR): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3V to +7.5V; (5)Voltage on MCLR with respect to VSS: 0V to +13.25V; (6)Total power dissipation: 1.0W; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20 mA; (10)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by all ports: 200 mA; (14)Maximum current sourced by all ports: 200 mA.

Features

PIC18F6722-I/PT features: (1)C Compiler Optimized Architecture; (2)100,000 Erase/Write Cycle Enhanced Flash Program Memory Typical; (3)1,000,000 Erase/Write Cycle Data EEPROM Memory Typical; (4)?Flash/Data EEPROM Retention: 100 Years Typical; (5)Self-Programmable under Software Control; (6)Priority Levels for Interrupts; (7)8 × 8 Single-Cycle Hardware Multiplier; (8)Extended Watchdog Timer (WDT): - Programmable period from 4 ms to 131s; (9)In-Circuit Debug (ICD) via Two Pins; (10)Wide Operating Voltage Range: 2.0V to 5.5V; (11)Programmable Brown-out Reset (BOR) with Software Enable Option.

Diagrams

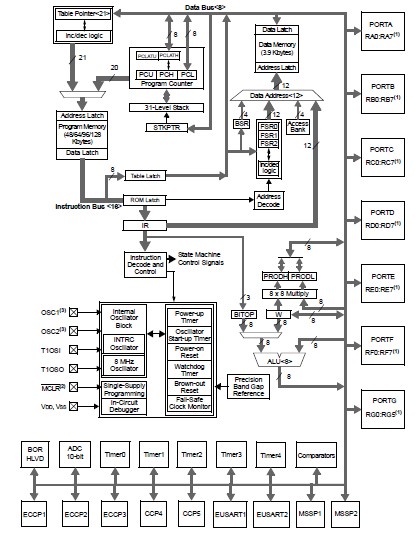

PIC18F6722-I/PT block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC18F6722-I/PT
PIC18F6722-I/PT

Microchip Technology

8-bit Microcontrollers (MCU) FLASH MICROCONTROLLER

Data Sheet

0-1: $6.17
1-10: $4.94
10-25: $4.82
25-100: $4.70
