Product Summary

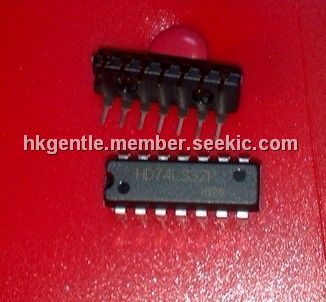

The HD74LS32P is a Quadruple 2-input Positive OR Gate.

Parametrics

HD74LS32P absolute maximum ratings: (1)Supply voltage:7 V ; (2)Input voltage:7 V ; (3)Power dissipation:400 mW ; (4)Storage temperature:–65 to +150℃.

Features

HD74LS32P features: (1)package type: DILP-14pin; (2)package code(previous code):PRDP0014AB-B; (3)package abbreviation:P.

Diagrams

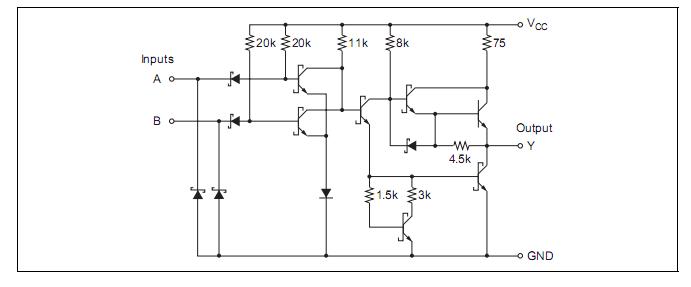

HD74LS32P diagram
