Product Summary
The PC357N3TJ00F is a Mini-flat Package, General Purpose Photocoupler. It contains an IRED optically coupled to a phototransistor.
Parametrics
PC357N3TJ00F absolute maximum ratings: (1)Forward current: 50 mA; (2)Peak forward current: 1 A; (3)Reverse voltage: 6 V; (4)Power dissipation: 70 mW; (5)Collector-emitter voltage: 80 V; (6)Emitter-collector voltage: 6 V; (7)Collector current: 50 mA; (8)Collector power dissipation: 150 mW; (9)Total power dissipation: 170 mW; (10)Operating temperature: -30 to +100 ℃; (11)Storage temperature: -40 to +125 ℃; (12)Soldering temperature: 260 ℃.
Features
PC357N3TJ00F features: (1)4-pin Mini-flat package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)High collector-emitter voltage (VCEO : 80V); (4)Current transfer ratio (CTR) : MIN. 50% at IF=5mA, VCE=5V; (5)Several CTR ranks available; (6)High isolation voltage between input and output (Viso(rms): 3.75kV); (7)Lead-free and RoHS directive compliant.

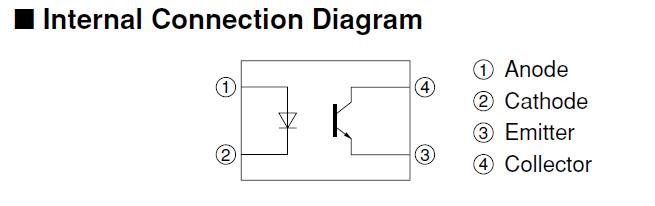

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

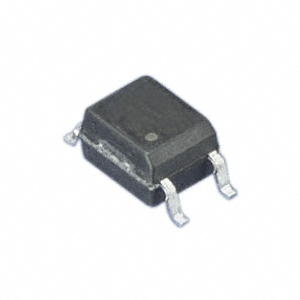

PC357N3TJ00F |
Sharp Microelectronics |
Transistor Output Optocouplers 200-400% CTR ranked PC357NTJ000F |
Data Sheet |
|
|
|||||||||||||||
