NE555P

Single Precision Timer, DIP, 18 V, Adjustable Duty Cycle, ±225 mA, Texas Instruments

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.05~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.05~0.10

PartNumber:: NE555P

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-19

From Other Seller

Part Number:NE555P
US $0.05 - 0.10
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

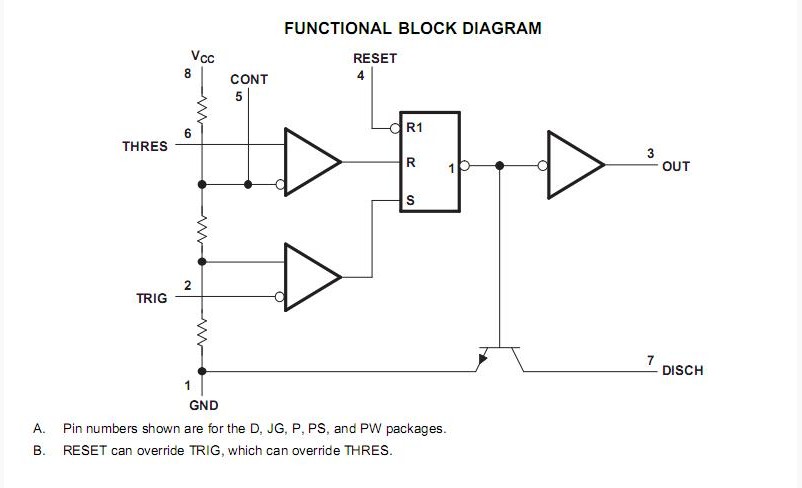

The NE555P is a precision timing circuit capable of producing accurate time delays or oscillation. In the time-delay or monostable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the astable mode of operation, the frequency and duty cycle of the NE555P can be controlled independently with two external resistors and a single external capacitor. The threshold and trigger levels normally are two-thirds and one-third, respectively, of VCC. These levels of the NE555P can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels of the NE555P are compatible with TTL inputs.

Parametrics

NE555P absolute maximum ratings: (1)Supply voltage:18 V; (2)Input voltage:VCC; (3)Output current:±225 mA; (4)Package thermal impedance:85℃/W; (5)Operating virtual junction temperature:150℃; (6)Storage temperature range:–65℃ to 150℃.

Features

NE555P features: (1)Timing From Microseconds to Hours ; (2)Adjustable Duty Cycle; (3)Astable or Monostable Operation ; (4)TTL-Compatible Output Can Sink or Source up to 200 mA.
