Product Summary

The KSP2222A is a NPN General Purpose Amplifier.

Parametrics

KSP2222A absolute maximum ratings: (1)VCBO Collector-Base Voltage: 75 V; (2)VCEO Collector-Emitter Voltage: 40 V; (3)VEBO Emitter-Base Voltage: 6.0 V; (4)IC Collector current: 600 mA; (5)TJ Junction Temperature: +150 ℃; (6)Tstg Storage Temperature: -55 ~ +150 ℃.

Features

KSP2222A features: (1)Collector-Emitter Voltage: VCEO= 40V; (2)Collector Power Dissipation: PC (max)=625mW; (3)Available as PN2222A.

Diagrams

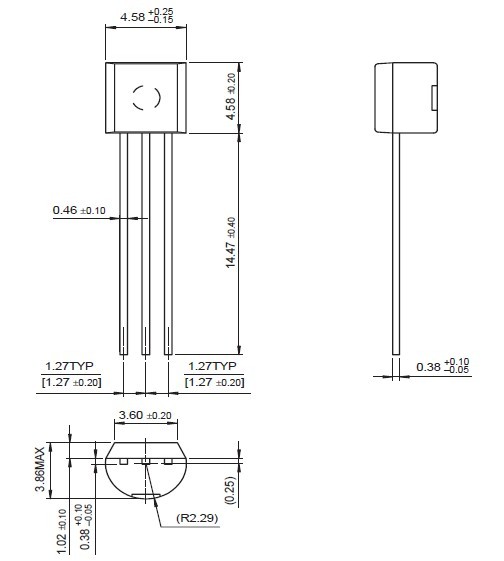

KSP2222A Package Dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
KSP2222A
KSP2222A

Other


Data Sheet

Negotiable
KSP2222ABU
KSP2222ABU

Fairchild Semiconductor

Transistors Bipolar (BJT) NPN Si Transistor Epitaxial

Data Sheet

0-1: $0.12
1-25: $0.11
25-100: $0.07
100-250: $0.04
KSP2222ATA
KSP2222ATA

Fairchild Semiconductor

Transistors Bipolar (BJT) NPN Si Transistor Epitaxial

Data Sheet

0-1: $0.04
1-25: $0.04
25-100: $0.03
100-250: $0.02
KSP2222ATA_Q
KSP2222ATA_Q

Fairchild Semiconductor

Transistors Bipolar (BJT) NPN Si Transistor Epitaxial

Data Sheet

Negotiable
KSP2222ATAM
KSP2222ATAM

Fairchild Semiconductor

Transistors Bipolar (BJT)

Data Sheet

Negotiable
KSP2222AIUTA
KSP2222AIUTA

Fairchild Semiconductor

Transistors Bipolar (BJT)

Data Sheet

Negotiable
KSP2222ATF
KSP2222ATF

Fairchild Semiconductor

Transistors Bipolar (BJT) NPN Si Transistor Epitaxial

Data Sheet

0-1: $0.04
1-25: $0.04
25-100: $0.03
100-250: $0.02
