Product Summary

The N82S147N is a field programmable 4K-bit TTL bipolar PROM, which means that custom patterns are immediately available by following the Signetics Generic I fusing procedure. The standard device is supplied with all outputs at logical low. Outputs are programmed to a logic High level at any specified address by fusing the Ni-Cr link matrix.

Parametrics

N82S147N absolute maximum ratings: (1)Supply voltage: 7.0V; (2)Input voltage: 5.5V; (3)Output voltage off-state: 5.5V; (4)Operating temperature range: 0 to 75℃; (5)Storage temperature range: -65 to 150℃.

Features

N82S147N features: (1)Address access time: 60 ns max; (2)Power dissipation: 625 mW/bit typ; (3)Input loading: -100μA max; (4)One chip Enable input; (5)On-chipaddress decoding; (6)No separate fusing pins; (7)Fully TTL compatible; (8)Outputs: 3-state; (9)Unprogrammed outputs are low level.

Diagrams

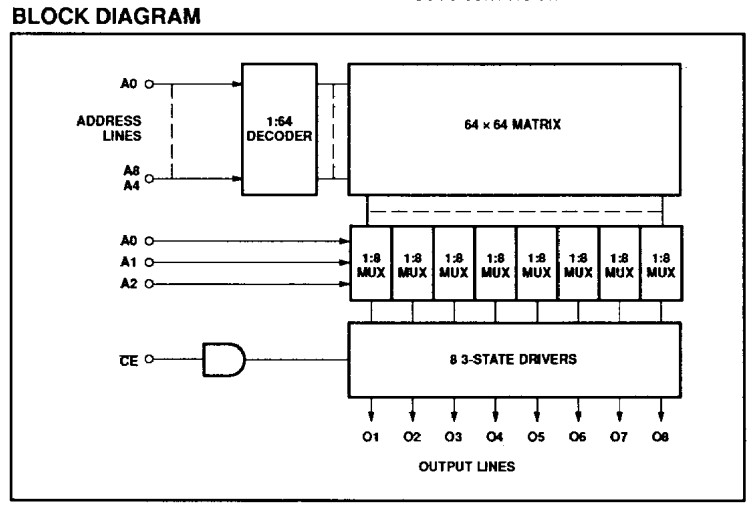

N82S147N block diagram
