FGA25N120ANTD

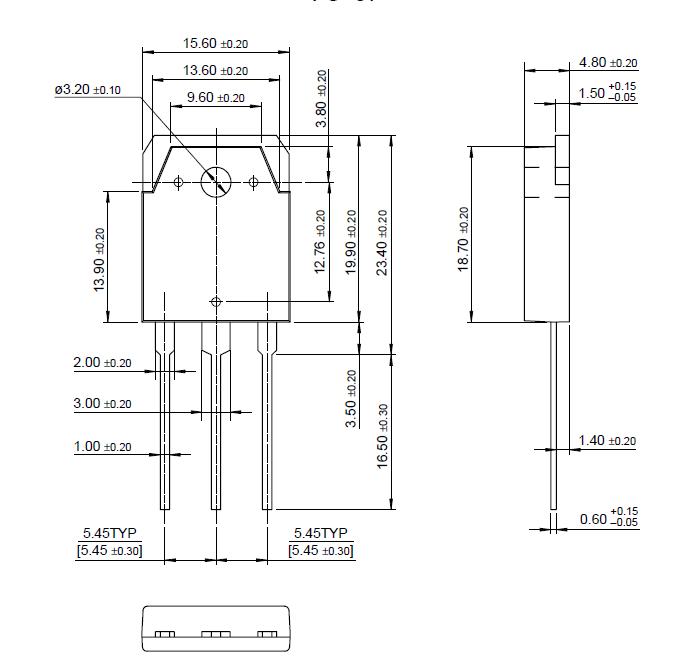

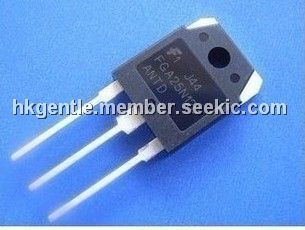

FAIRCHILD, 1200V NPT Trench IGBT, TO-3P, 1200 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: FGA25N120ANTD

Brand:: Fairchild Semiconductor - Fairchild | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-14

From Other Seller

Part Number:FGA25N120ANTD
US $0.10 - 0.20
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FAIRCHILD is a 1200 V NPT Trench IGBT. Using Fairchild’s proprietary trench design and advanced NPT technology, it offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. The FAIRCHILD is well suited for the resonant or soft switching application such as induction heating, microwave oven, etc.

Parametrics

FAIRCHILD absolute maximum ratings: (1)VCES Collector-Emitter Voltage: 1200 V; (2)VGES Gate-Emitter Voltage: ± 20 V; (3)IC Collector Current @ TC = 25℃: 50 A; (4)Collector Current @ TC = 100℃: 25 A; (5)ICM Pulsed Collector Current: 75 A; (6)IF Diode Continuous Forward Current @ TC = 100℃: 25 A; (7)IFM Diode Maximum Forward Current: 150 A; (8)PD Maximum Power Dissipation @ TC = 25℃: 312 W; (9)Maximum Power Dissipation @ TC = 100℃: 125 W; (10)TJ Operating Junction Temperature: -55℃ to +150℃; (11)Tstg Storage Temperature Range: -55℃ to +150℃; (12)TL Maximum Lead Temp. for soldering Purposes, 1/8” from case for 5 seconds: 300℃.

Features

FAIRCHILD features: (1)NPT Trench Technology, Positive temperature coefficient; (2)Low saturation voltage: VCE(sat), typ = 2.0V @ IC = 25A and TC = 25℃; (3)Low switching loss: Eoff, typ = 0.96mJ @ IC = 25A and TC = 25℃; (4)Extremely enhanced avalanche capability.
