Product Summary

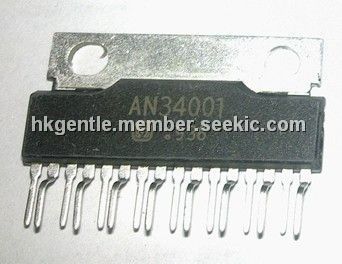

The AN34001 is a nine-output power supply IC, consisting of five linear regulator (one adjustable) and four voltage followers. Seven of the outputs are controlled by three control switches. The AN34001 can be used in voltage supply for car audio system.

Parametrics

AN34001 absolute maximum ratings: (1)Supply current VCC: 26.0 V; (2)Supply current ICC: 5.2 A; (3)Power dissipation PD: 16.25 W; (4)Operating ambient temperature Topr: -30 to +85 ℃; (5)Storage temperature Tstg: -55 to +150 ℃.

Features

AN34001 features: (1)Thermal protection circuit; (2)Short circuit protection circuit; (3)Over voltage protection circuit; (4)Operating supply voltage range: 6.6 V to 18.0 V (13.2 V typical); (5)High maximum operating voltage: 26 V.

Diagrams

AN34001 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AN34001A-LC
AN34001A-LC

IC VOLT REG 9 OUTPUTS ZIP-16
Data Sheet
0-1: $2.08
1-25: $1.67
25-100: $1.52
100-250: $1.37
250-500: $1.23
500-1000: $1.07
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AN34001A-LC
AN34001A-LC

IC VOLT REG 9 OUTPUTS ZIP-16
Data Sheet
0-1: $2.08
1-25: $1.67
25-100: $1.52
100-250: $1.37
250-500: $1.23
500-1000: $1.07
