Product Summary

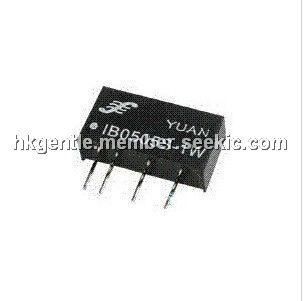

The IB0505S-1W is a DC-DC converter.

Parametrics

IB0505S-1W absolute maximum ratings: (1)Maximum Capacitive Load: 220 μF; (2)Isolation Capacitance: 60 pF; (3)Switching Frequency: 40 KHz -160 KHz; (4)Operating Temperature: -40℃ to +85℃; (5)Storage Temperature: -40℃ to +125℃; (6)Case Temperature: 100℃; (7)Input Reflected Ripple Current: 20 mA.

Features

IB0505S-1W (1)Single Output; (2)SIP or DIP Package; (3)Industry Standard Pinout; (4)1000 VDC Isolation; (5)-40℃ to +85℃ Operation; (6)MTBF >1.1 MHrs; (7)3 Year Warranty.

Diagrams

IB0505S-1W package dimensions
