Product Summary

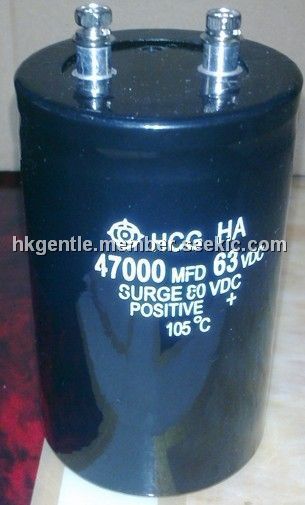

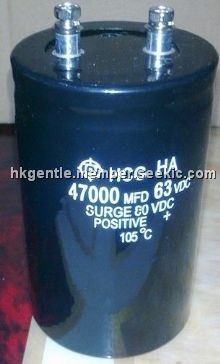

The HCGHA1J473Y is a screw terminal type aluminum electrolytic capacitor.

Parametrics

HCGHA1J473Y absolute maximum ratings: (1)Temperature range: –40℃ to +105℃; (2)Capacitance tolerance: ±20% (20℃,120Hz); (3)Rated voltage: 25 to 400V.DC; (4)Leakage current: 0.01CV (μA) or 5mA, whichever is smaller or less[C = nominal capacitance (μF), V = rated voltage (V)]; (5)Dissipation factor: Less than the value specified in the standard products table. (20℃,120Hz); (6)Permissible ripple current: As specified in the standard products table. (105℃,120Hz); (7)Others: JIS C 5101-4.

Features

HCGHA1J473Y features: Warranty life of 2000 hours at 105℃ through improvement of electrolyte liquid.

Diagrams

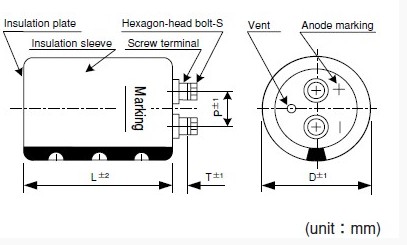

HCGHA1J473Y dimension

HCGHA1J2221
HCGHA1J2221
Other

Data Sheet
Negotiable
