Product Summary

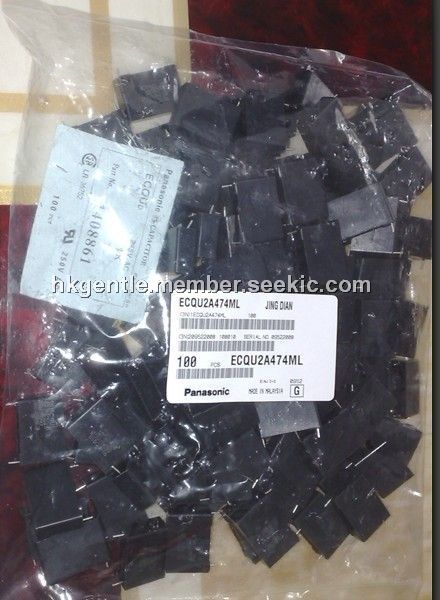

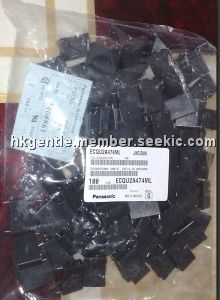

The ECQU2A474ML is a Metallized Polyester Film Capacitor.

Parametrics

ECQU2A474ML absolute maximum ratings: (1)Category temp. range: - 40℃ to + 100 ℃ (85 ℃ max.on UL/CSA spec.); (2)Rated voltage 275 VAC (IEC60384-14), 250 VAC (UL/CSA); (3)Capacitance range: 0.0010 μF to 2.2 μF; (4)Capacitance tolerance: ± 10 % (K), ± 20 %(M); (5)Dissipation factor (tanσ) tanσ<=1.0 % (20 ℃, 1 kHz).

Features

ECQU2A474ML features: (1)Compact; (2)Flame-retardant plastic case and non-combustible resin; (3)RoHS directive compliant.

Diagrams

ECQU2A474ML Dimensions
