Product Summary

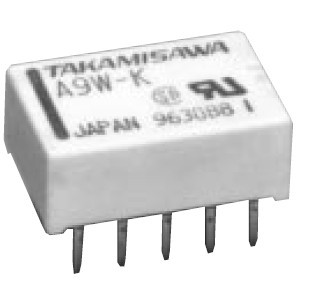

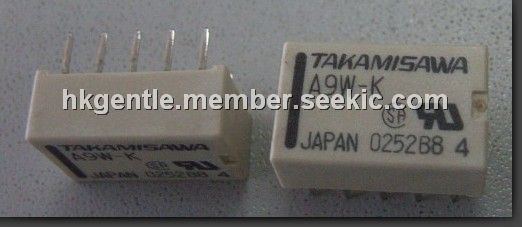

The A-9W-K is a miniature relay.
Parametrics
A-9W-K absolute maximum ratings: (1)Arrangement: 2 form C (DPDT); (2)Material: Gold overlay silver alloy; (3)Resistance (initial): Maximum 50 mW (at 1 A 6 VDC); (4)Rating (resistive): 0.5 A 125 VAC or 1 A 30 VDC; (5)Maximum Carrying Current: 2 A; (6)Maximum Switching Power: 62.5 AV/30 W; (7)Maximum Switching Voltage: 250 VAC, 220 VDC; (8)Maximum Switching Current: 2 A; (9)Minimum Switching Load*1: 0.01 mA 10 mVDC; (10)Insulation Resistance (at 500 VDC) Minimum: 1,000 MW; (11)between open contacts 1,000 VAC: 1 minute; (12)Dielectric Strength between adjacent contacts 1,000 VAC: 1 minute; (13)between coil and contacts: 1,000 VAC 1 minute; (14)Surge Strength: 1,500 V (between coil and contacts); (15)Shock Misoperation: 500 m/s2 (11 ±1 ms); (16)Resistance Endurance: 1,000 m/s2 ( 6 ±1 ms); (17)Weight Approximately: 1.2 g.
Features
A-9W-K features: (1)Extremely low profile and light weight—Height: 5 mm; —Weight: approximately 1.2 g; (2)UL, CSA recognized; (3)Conforms to FCC rules and regulations part 68—Surge strength 1,500 V; (4)High reliability—bifurcated contacts; (5)Wide operating range; (6)DIL pitch terminals; (7)Plastic sealed type; (8)Latching version available; (9)RoHS compliant since date code: 0437B8 Please see page 7 for more information.
