Product Summary
The 2SK2564 is a Power MOSFET.
Parametrics
2SK2564 absolute maximum ratings: (1)Storage Temperature Tstg: -55 to 150 ℃; (2)Channel Temperature Tch: 150℃; (3)Drain-Source Voltage VDSS: 600 V; (4)Gate-Source Voltage VGSS: ±30V; (5)Continuous Drain Current: 8A; (6)Continuous Drain Current: 24 A; (7)Continuous Source Current: 8; (8)Total Power Dissipation PT 50 W; (9)Single Pulse Avalanche Current IAS: 8 A; (10)Dielectric Strength Vdis Terminals to case: 2 kV; (11)Mounting Torque TOR: 0.5 Nm.
Features
2SK2564 features: (1)Input capacitance (Ciss) is small. Especially, input capacitance at 0 biass is small; (2)The static Rds(on) is small; (3)The switching time is fast; (4)Avalanche resistance guaranteed.

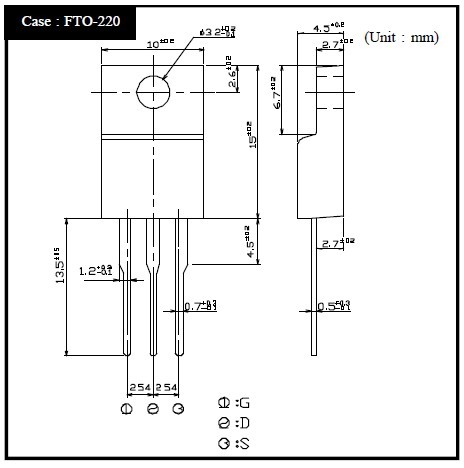

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK2564 |
Other |
|
Data Sheet |
Negotiable |
|
||||
