Product Summary

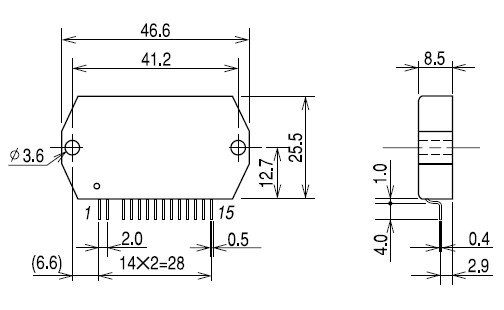

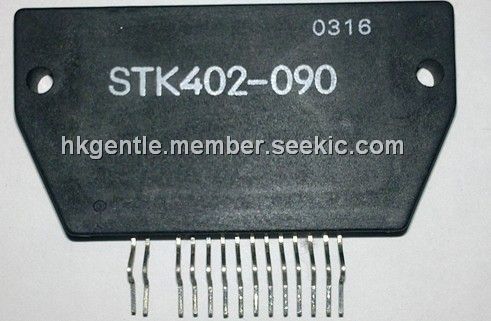

The STK402-090 is an audio power amplifier hybrid IC that consists of optimally-designed discrete component power amplifier circuits that have been miniaturized using SANYOs unique insulated metal substrate technology (IMST). The STK402-090 has adopted a new low thermal resistance substrate in these products to reduce the package size by about 60% as compared to the earlier SANYO STK407-000 series.
Parametrics
STK402-090 absolute maximum ratings: (1)Maximum supply voltage (No signal), VCC max(0): ±34V; (2)Maximum supply voltage VCC max: ±32V; (3)Thermal resistance θj-c: 3.6℃/W; (4)Junction temperature, Tj max: 150℃; (5)Operating IC substrate temperature, Tc max: 125℃; (6)Storage temperature, Tstg: –30 to +125℃; (7)Allowable load shorted time ts: 0.5s.
Features
STK402-090 features: (1)The pin arrangement is compatible with that of the 3-channel STK402-200 series. This means that 3-channel printed circuit boards can also be used for 2-channel products; (2)Miniature packages; (3)Output load impedance: RL = 6Ω; (4)Allowable load shorted time: 0.3 seconds; (5)Supports the use of standby, muting, and load shorting protection circuits.
