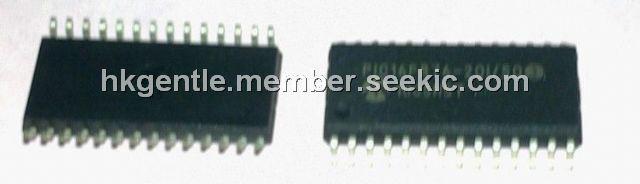

Product Summary

The PIC16F876-20/SO is a 28/40-pin 8-Bit CMOS flash microcontroller.

Parametrics

PIC16F876-20/SO features: (1)High performance RISC CPU; (2)Only 35 single word instructions to learn; (3)All single cycle instructions except for program branches which are two cycle; (4)Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle; (5)Up to 8K × 14 words of FLASH Program Memory, Up to 368 × 8 bytes of Data Memory(RAM); (6)Up to 256 × 8 bytes of EEPROM Data Memory; (7)Pinout compatible to the PIC16C73B/74B/76/77; (8)Interrupt capability (up to 14 sources); (9)Eight level deep hardware stack; (10)Direct, indirect and relative addressing modes; (11)Power-on Reset (POR); (12)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (13)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (14)Programmable code protection; (15)Power saving SLEEP mode; (16)Selectable oscillator options; (17)Low power, high speed CMOS FLASH/EEPROM technology; (18)Fully static design; (19)In-Circuit Serial Programming(ICSP) via two pins.

Features

PIC16F876-20/SO absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3 V to (VDD + 0.3 V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5 V; (5)Voltage on MCLR with respect to VSS: 0 to +14 V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5 V; (7)Total power dissipation: 1.0 W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA; (10)Input clamp current, IIK (VI < 0 or VI > VDD): ± 20 mA; (11)Output clamp current, IOK (VO < 0 or VO > VDD): ± 20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA; (14)Maximum current sunk by PORTA, PORTB, and PORTE (combined): 200 mA; (15)Maximum current sourced by PORTA, PORTB, and PORTE (combined): 200 mA; (16)Maximum current sunk by PORTC and PORTD (combined): 200 mA; (17)Maximum current sourced by PORTC and PORTD (combined): 200 mA.

Diagrams

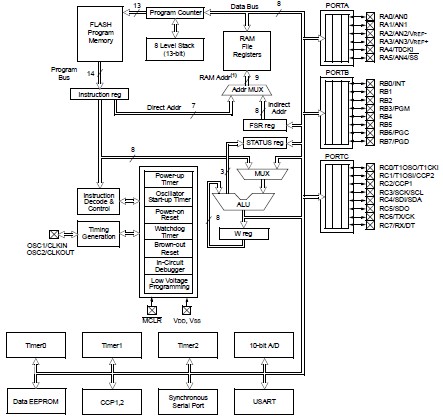

PIC16F876-20/SO block diagram
