Product Summary
The MA3X748 is a Silicon epitaxial planar type of Schottky Barrier Diode.
Parametrics
MA3X748 absolute maximum ratings: (1)Reverse voltage (DC) VR: 20 V; (2)Repetitive peak reverse voltage VRRM: 20 V; (3)Average forward current IF(AV): 500 mA; (4)Non-repetitive peak forward surge current IFSM: 3 A; (5)Junction temperature Tj: 125℃; (6)Storage temperature Tstg: -55℃ to +125℃.
Features
MA3X748 features: (1)Low VF type of MA2Z720; (2)High rectification efficiency caused by its low forward-risevoltage; (3)Optimum for high-frequency rectification because of its short reverse recovery time.

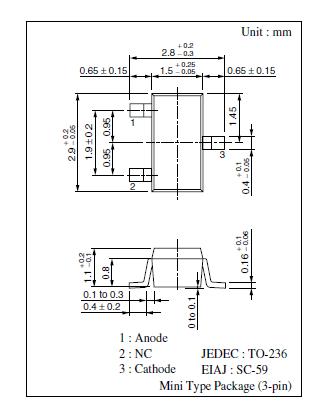

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
MA3X74800L |
DIODE SCHOTTKY 20V 500MA MINI 3P |
Data Sheet |
Negotiable |
|
||||||
MA3X748 |
Other |
Data Sheet |
Negotiable |
|
