Product Summary

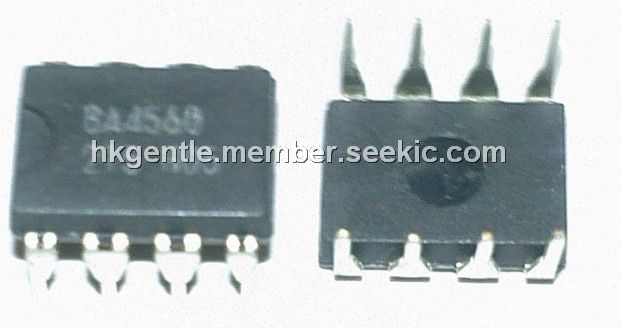

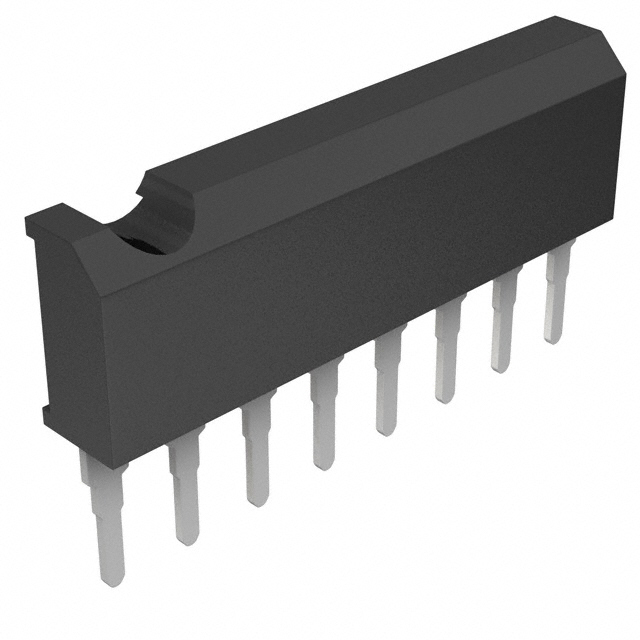

The BA4560 is a dual operational amplifier which achieves approximately twice the high output current of the BA4558, as well as featuring a higher slew rate of 4V / μs, a gain band width of 10MHz, and an improved frequency characteristic. The following packages are available: 8-pin DIP (BA4560), 8-pin SOP (BA4560F), and 8-pin SIP (BA4560N). The applications of the BA4560 include Active filters, Audio amplifiers, VCOs and Other electronic circuits.

Parametrics

BA4560 absolute maximum ratings: (1)Power supply voltage, VCC: ± 18V; (2)Power dissipation: 800mW; (3)Differential input voltage VID: ± VCC; (4)Common-mode input voltage VI: -VCC to VCC; (5)Operating temperature Topr: -40 to 85℃; (6)Storage temperature Tstg: -55 to 125℃.

Features

BA4560 features: (1)Built-in output short-circuit protection circuit; (2)Internal phase correction; (3)No latch-up; (4)Wide range of common-mode modes and differential voltage; (5)High gain and low noise.

Diagrams

BA4560 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BA4560
BA4560

ROHM Semiconductor

Operational Amplifiers - Op Amps IC OPAMP DUAL 18V

Data Sheet

0-1: $0.51
1-25: $0.41
25-100: $0.31
100-500: $0.19
