AT29LV040A-15TU

4-megabit, 3-volt, 256-byte, Sector Flash Memory, TSOP32, Fast Read Access Time, Low Power Dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: AT29LV040A-15TU

Brand:: ATMEL Corporation - ATMEL | Pack: TSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Susan Chen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-12

From Other Seller

Part Number:AT29LV040A-15TU
US $0.50 - 1.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
SIL9030CTU

US $2.50 - 5.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

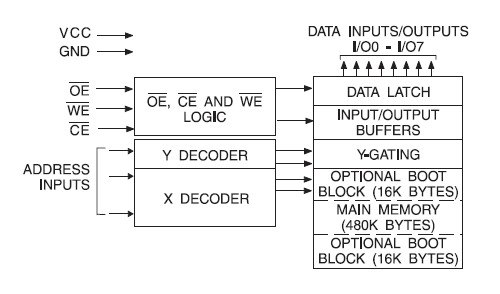

The AT29LV040A-15TU is a 3-volt only in-system Flash Programmable and Erasable Read Only Memory(PEROM). Its 4 megabits of memory is organized as 524,288 words by 8 bits. Manufactured with Atmel advanced nonvolatile CMOS EEPROM technology, the AT29LV040A-15TU offers access times to 150 ns, and a low 54 mW power dissipation. When the AT29LV040A-15TU is deselected, the CMOS standby current is less than 50 μA. The device endurance is such that any sector can typically be written to in excess of 10,000 times. The programming algorithm is compatible with other devices in Atmel 3-volt only Flash memories. Reprogramming the AT29LV040A-15TU is performed on a sector basis; 256 bytes of data are loaded into the device and then simultaneously programmed.

Parametrics

AT29LV040A-15TU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (Including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on A9 (Including NC Pins) with Respect to Ground: -0.6V to +13.5V.

Features

AT29LV040A-15TU features: (1)Single Voltage, Range 3V to 3.6V Supply; (2)3-volt Only Read and Write Operation; (3)Software Protected Programming; (4)Fast Read Access Time: 150 ns; (5)Low Power Dissipation: 15 mA Active Current, 50μA CMOS Standby Current; (6)Sector Program Operation: Single Cycle Reprogram (Erase and Program), 2048 Sectors (256 Bytes/Sector), Internal Address and Data Latches for 256 Bytes; (7)Two 16K Bytes Boot Blocks with Lockout; (8)Fast Sector Program Cycle Time: 20 ms Max; (9)Internal Program Control and Timer; (10)DATA Polling for End of Program Detection; (11)Typical Endurance ＞ 10,000 Cycles; (12)CMOS and TTL Compatible Inputs and Outputs; (13)Green (Pb/Halide-free) Packaging Option.
