Product Summary

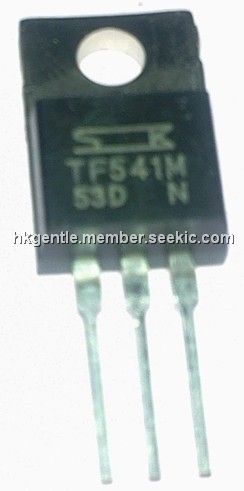

The TF541M is a 5A thyristor.
Parametrics
TF541M absolute maximum ratings: (1)Repetitive peak off-state voltage VDRM: 400V; (2)Repetitive peak reverse voltage VRRM: 400V; (3)Non-repetitive peak off-state voltage VDSM: 500V; (4)Non-repetitive peak reverse voltage VRSM: 500V; (5)Average on-state current IT(AV): 5.0A; (6)RMS on-state current IT(RMS): 7.8A; (7)Surge on-state current ITSM: 80A; (8)Peak forward gate current IFGM: 2.0A; (9)Peak forward gate voltage VFGM: 10V; (10)Peak reverse gate voltage VRGM: 5.0V; (11)Peak gate power loss PGM: 5.0W; (12)Average gate power loss PG(AV): 0.5W; (13)Junction temperature Tj: –40 to +125℃; (14)Storage temperature Tstg: –40 to +125℃.
Features
TF541M features: (1)Repetitive peak off-state voltage: VDRM=200, 400, 600V; (2)Average on-state current: IT(AV)=5A; (3)lGate trigger current: IGT=15mA max.
Diagrams
