Product Summary

The SPPY110600 is a 0.1A 48V DC qualified telephone-hook switch.

Parametrics

SPPY110600 absolute maximum ratings: (1)Operating temperature range: –10 to ＋60℃; (2)Rating （Resistive load: 0.1mA 3V DC min.; 0.1A 48V DC max.; (3)Initial contact resistance: 50mΩ max.; (4)Insulation resistance: 100MΩ min. 500V DC; (5)Voltage proof: 500V AC for 1 min.; (6)Robustness of terminal: 5N for 1 min.

Features

SPPY110600 features: (1)Low profile with thickness of 8.0mm.; (2)Using sliding contacts enhances reliability even for very low current.

Diagrams

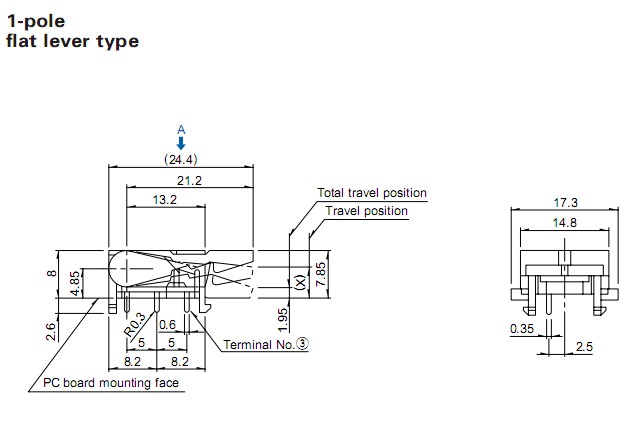

SPPY110600 dimensions
