Product Summary

The LLS1V153MELB is a snap-in terminal type, standard alumimum electrolytic capacitor.

Parametrics

LLS1V153MELB specification: (1)Category Temperature Range: – 40 to +85℃ (16~250V), – 25 ~ +85℃(350 ~ 450V); (2)Capacitance Tolerance: ± 20% at 120Hz, 20℃; (3)Rated Voltage Range: 16 to 450V; (4)Rated Capacitance Range: 56 to 56000μF; (5)Leakage Current: I ≤3√￣CV(μA)(After 5 minutes application of rated voltage) [C : Rated Capacitance (μF) V : Voltage (V)] 3 CV.

Features

LLS1V153MELB features: (1)Withstanding 3000 hours application of rated ripple current at 85℃; (2)Adapted to the RoHS directive (2002/95/EC).

Diagrams

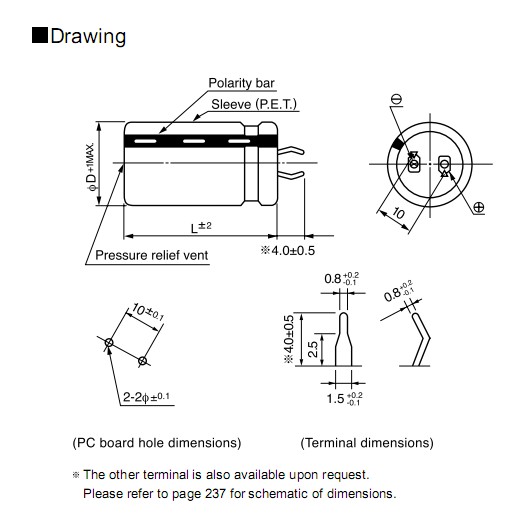

LLS1V153MELB drawing

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LLS1V153MELB
LLS1V153MELB
Nichicon
Aluminum Electrolytic Capacitors - Snap In 35volts 15000uF 85c 30x40x10L/S
Data Sheet
0-1: $3.83
1-250: $2.45
250-500: $2.23
500-1250: $1.94
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LLS1C103MELZ
LLS1C103MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 10000uF 85c
Data Sheet
0-1: $1.76
1-250: $1.13
250-500: $1.01
500-1250: $0.89
LLS1C123MELA
LLS1C123MELA
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 12000uF 85c 25x25x10L/S
Data Sheet
0-1: $2.01
1-250: $1.28
250-500: $1.18
500-1250: $1.02
LLS1C123MELZ
LLS1C123MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 12000uF 85c 22x30x10L/S
Data Sheet
0-1: $1.90
1-250: $1.21
250-500: $1.10
500-1250: $0.95
LLS1C153MELB
LLS1C153MELB
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 15000uF 85c 30x25x10L/S
Data Sheet
0-1: $2.43
1-250: $1.55
250-500: $1.41
500-1250: $1.23
LLS1C153MELZ
LLS1C153MELZ
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 15000uF 85c 22x35x10L/S
Data Sheet
0-1: $2.12
1-250: $1.35
250-500: $1.23
500-1250: $1.07
LLS1C183MELA
LLS1C183MELA
Nichicon
Aluminum Electrolytic Capacitors - Snap In 16volts 18000uF 85c 25x35x10L/S
Data Sheet
0-1: $2.45
1-250: $1.57
250-500: $1.43
500-1250: $1.24
