Product Summary
The CHA5052-QGG/21 is a 7-16GHz High Power Amplifier. The CHA5052-QGG/21 is a three-stage monolithic high power amplifier. The circuit is manufactured with a power PHEMT process, 0.15μm gate length, via holes through the substrate. The CHA5052-QGG/21 is supppplied in RoHS compliant SMD package.
Parametrics
CHA5052-QGG/21 absolute maximum ratings: (1)Vd Maximum Drain bias voltage: +5.5 V; (2)Id Power supply quiescent current: 800 mA; (3)Vg Gate bias voltage: -4 to +0.8 V; (4)Pin Maximum input power overdrive: +13.0 dBm; (5)Tj Maximum channel temperature: +175℃; (6)Top Operating temperature range: -40℃ to +80℃; (7)Tstg Storage temperature range: -55℃ to +125℃.
Features
CHA5052-QGG/21 features: (1)Frequency range 7-16GHz; (2)Gain: 19dB; (3)37dBm 3rd order intercept point; (4)29dBm Output Power @1dB compression; (5)ESD protected; (6)DC power consumption, 700mA @ 5V; (7)28LQFN5x5.

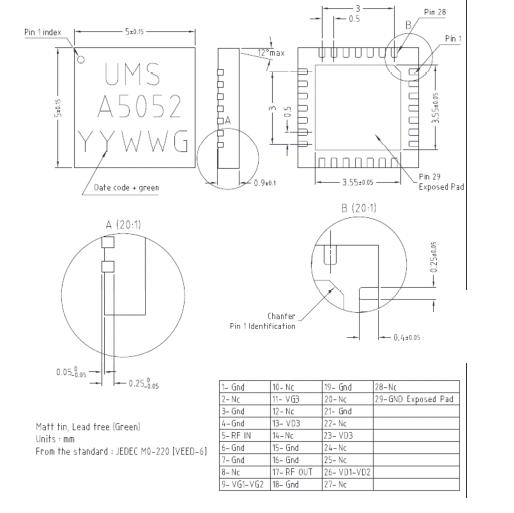

Diagrams
 |
