Product Summary

The AN7161NFP is a monolithic integrated circuit designed for BTL audio high power amplifier with built-in headphone amplifier. It can be widely applicable to Hi Fi, car stereo and TV sound mulitplex output.

Parametrics

AN7161NFP absolute maximum ratings: (1)supply voltage, VCC: 26V; (2)supply current, ICC: 4A; (3)power dissipation, PD: 41.7W; (4)surge supply voltage, VCC(surge): 50V; (5)operating ambient temperature, Topr: -30 to 75℃; (6)storage temperature, Tstg: -55 to 150℃.

Features

AN7161NFP features: (1)low quiescent current, low distortion, low noise, high output power; (2)wide supply voltage range: VCC=6V to 26V; (3)incorporating headphone amplifier circuit; (4)built-in muting circuit; (5)incorporating protection circuits; (6)12-lead single-in-line package; (7)fewer external components; (8)low shock noise from power ON/OFF operation.

Diagrams

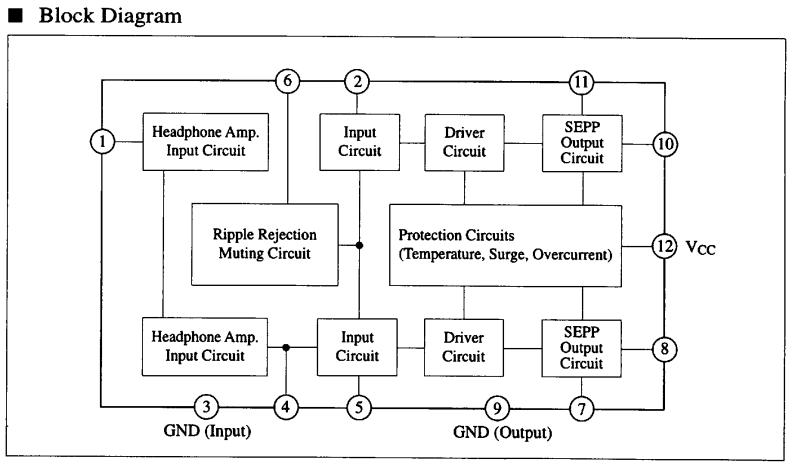

AN7161NFP block diagram
