Product Summary
The 2SC4833 is the switching power transistor.
Parametrics
2SC4833 absolute maximum ratings: (1)Storage Temperature: -55～150℃; (2)Junction Temperature Tj 150 ℃ Collector to Base Voltage: 500 V; (3)Collector to Emitter Voltage: 400 V; (4)Emitter to Base Voltage: 7 V; (5)Collector Current DC: 5 A; (6)Collector Current Peak: 10A; (7)Base Current DC: 2 A; (8)Base Current Peak: 4 A; (9)Total Transistor Dissipation, Tc = 25℃: 35 W; (10)Dielectric Strength Vdis Terminals to case, AC 1 minute: 2 kV.
Features
2SC4833 characteristics: (1)Collector to Emitter Sustaining Voltage VCEO(sus), IC = 0.1A: Min 400 V; (2)Collector Cutoff Current ICBO At rated Voltage Max 0.1 mA; (3)Emitter Cutoff Current IEBO, At rated Voltage: Max 0.1 mA; (4)DC Current Gain, VCE = 2V, IC = 2.5A: 10～25; (5)Collector to Emitter Saturation Voltage, IC = 2.5A: Max 1.0 V; (6)Base to Emitter Saturation Voltage VBE(sat), IB = 0.5A: Max 1.5 V; (7)Thermal Resistance, Junction to case: Max 3.57 ℃/W; (8)Transition Frequency, VCE = 10V, Ic = 0.5A: TYP 13 MHz.

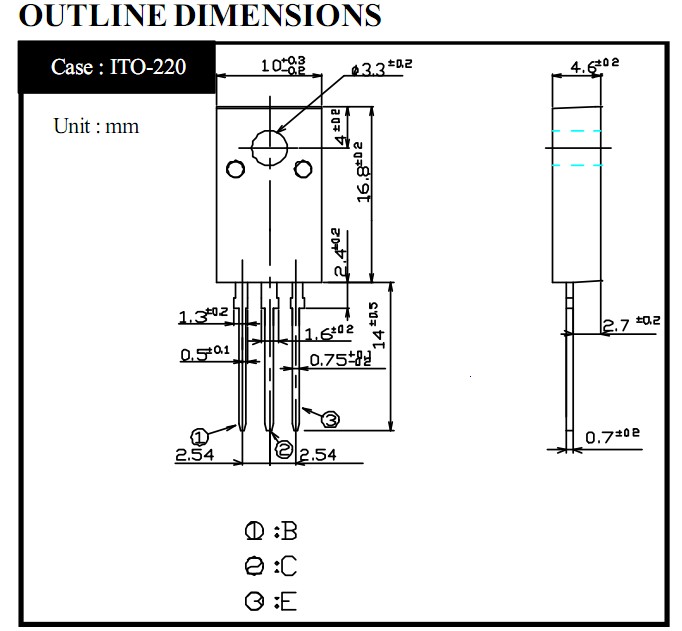

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC4833 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC4833-4000 |
Shindengen |
Transistors Bipolar (BJT) VCEO=400 IC=5 HFE=10 |
Data Sheet |
Negotiable |
|
||||
|
2SC4833-7100 |
Shindengen |
Transistors Bipolar (BJT) VCEO=400 IC=5 HFE=10 |
Data Sheet |
Negotiable |
|
||||
|
2SC4833-7012 |
Shindengen |
Transistors Bipolar (BJT) VCEO=400 IC=5 HFE=10 |
Data Sheet |
Negotiable |
|
||||
|
2SC4833-7112 |
Shindengen |
Transistors Bipolar (BJT) VCEO=400 IC=5 HFE=10 |
Data Sheet |
Negotiable |
|
||||
|
2SC4833-7000 |
Shindengen |
Transistors Bipolar (BJT) VCEO=400 IC=5 HFE=10 |
Data Sheet |
Negotiable |
|
||||
